Different bathroom layouts


7 Designer-Approved Bathroom Layout Ideas that Never Fail

Mindy Gayer

The first step to tackling any bathroom renovation is to decide on the layout. You probably spend way more time in your bathroom than you realize, so getting your layout right can take a stuffy, boring bathroom and create a serene space you enjoy being in.

Though your layout may be somewhat limited by the space you have to work with, there are many ways to arrange a bathroom to make the most out of any quantity of square footage. Whether you're lucky enough to have a huge room to work with or you have tight space you want to maximize, we asked a few designers for their favorite bathroom layouts.

From small to oversized, read on for our designers' tips on creating the best layout for your space.

01 of 07

MyDomaine/Ellen Lindner

Tiffany White, Principal Designer of Mid City Interior Design went with this layout in a recent renovation after running into a cost issue and needing to save money on plumbing.

The Layout: A bathroom with the shower and sinks lined up on the same wall.

The Shower: Here, the shower and the vanity share the same wall, opposite the door. Not only does this save on plumbing costs, but it also allows you to ensure that the first thing you see when you walk into your bathroom isn't the toilet.

The Extras: According to White, "We have found that women prefer this layout because the vanity is opposite the shower and next to a window. This eliminates 'fizzy hair' or an oily makeup application."

Mid City Interiors

02 of 07

MyDomaine/Ellen Lindner

"This house was designed for a mid-to-upper age couple," says White. "While they still love soaking after a stressful day or tough workout, the walk-in shower, with a built-in bench, will soon become a necessity."

The Layout: An expansive bathroom layout with a separate shower and bathtub, perfect for a forever home.

The Shower: This bathroom is large enough to house both a shower and a standalone tub. In the center of the bathroom, a massive soaking tub acts as a centerpiece and lends the space an air of luxury.

The Extras: If you have enough space, a built-in bench is a great way to add a permanent perch for getting ready in the morning. This is a great idea if your bathroom is attached to the master closet and you need a place to rest while getting ready every morning.

Mid City Interior Design

03 of 07

MyDomaine/Ellen Lindner

This design from Mindy Gayer is perfect for a long, narrow bathroom space.

The Layout: A long, horizontal layout with the shower and the bathtub on opposite ends of the room.

The Shower: Here, a shower sits on the same wall as the vanity, separated by a pony wall. "That allowed us to integrate the vanity and shower spaces nicely and in a way that felt intentionally designed," says Gayer. On the other end of the bathroom is a freestanding soaking tub.

The Extras: If you have a large enough bathroom, consider splurging for a freestanding tub. According to Gayer, "freestanding tubs are great because they can help visually anchor a focal point in a bathroom." This layout is both beautiful and functional, with a window above the soaking tub to add a lot of natural light.

Mindy Gayer

04 of 07

MyDomaine/Ellen Lindner

The hardest part of planning for a renovation is predicting when your needs will change. Here's a great option for those who know they will want something different in the future.

The Layout: A mid-sized bathroom with just a soaking tub that can be easily converted to a shower when the time comes.

The Shower: "We designed the kids' bathroom to have a freestanding tub that could later be converted to a shower," says Gayer. "We installed an overhead rain shower, so that in two to three years as our clients' kids got older, they could add a wall-mounted rod with a shower curtain so the tub could double as a shower. "

The Extras: If you don't have room for both a shower and a standing tub, a layout like this proves you don't have to sacrifice those long soaks. Instead, install an overhead rain shower and tile the space behind your tubs so it can have a dual purpose.

Mindy Gayer

05 of 07

MyDomaine/Ellen Lindner

If you have a small bathroom space to work with, this layout from Christina Kim Interior Design is perfect.

The Layout: In this layout, a stacked sink vanity and makeup vanity rest opposite the shower with the toilet in between the two.

The Shower: Though this layout does not offer enough space for a standalone tub and a shower, you can opt for a dual shower-tub or go for just a walk-in shower with eye-catching tiles to act as a focal point. Think about your personal habits and which makes more sense for you.

The Extras: By placing the toilet parallel to the shower, you keep it out of the direct view. "In a typical small bathroom floor plan, the toilet would be situated where the makeup vanity is, which would keep it in direct view", says Kim.

Borden Interiors

06 of 07

MyDomaine/Ellen Lindner

This layout from Pure Salt Interiors is great if you want two separate vanities in your master bath.

The Layout: Focused on designing a spa-like bathroom, Leigh Lincoln of Pure Sat Interiors created enough room for two standalone vanities opposite a shower and a soaking tub.

The Shower: Because this space has room for both a shower and a standalone tub, the tub becomes the focal point in the center of the room. On one side is a water closet with the toilet while the other side has the walk-in shower.

The Extras:  "Utilizing one wall for a bank of cabinets allows for the addition of a vanity, offering lots of storage and counter space," says Lincoln. If storage and vanity space is key to your bathroom, consider two separate vanities over a single double-vanity.

Pure Salt Interiors

07 of 07

MyDomaine/Ellen Lindner

Last but not least, the perfect layout for a cozy powder room from Aly Morford of Pure Salt Interiors.

The Layout: In this small guest powder room, a vanity and a toilet sit on the same wall with enough room for a large statement lighting piece above the vanity.

The Shower: This small powder room does not have a shower, but if you had more space or you wanted to utilize this layout for a full bath, consider putting the shower to the left of the vanity or opposite the toilet.

The Extras:  Powder rooms are often focused just on the necessities, but Morford says they wanted to try to make this space feel larger than its footprint. "Adding art to the walls, choosing statement lighting above the vanity, placing pops of green, and opting for wall treatments, like wallpaper or millwork, make for a more dynamic and interesting space," she says.

Pure Salt Interiors

Different Types of Bathroom Layouts – Forbes Home

Table of Contents

{{ tocState. toggleTocShowMore ? 'Show more' : 'Show less' }}

We spend a lot of time in our bathrooms, and this focal point can make or break the overall functionality and aesthetic of a home. Whether you’re looking to renovate an existing bathroom, build from the ground up, or need to brush up on the different types of bathroom layouts that are widely found in homes, we’ve got you covered.

Advertisement

THIS IS AN ADVERTISEMENT AND NOT EDITORIAL CONTENT. Please note that we do receive compensation for any products you buy or sign up to via this advertisement, and that compensation impacts the ranking and placement of any offers listed herein. We do not present information about every offer available. The information and savings numbers depicted above are for demonstration purposes only, and your results may vary.

Is Your Home In Need Of A Bathroom Remodel?

Let your bathroom reflect your personality. Design a bathroom of your style with top-rated bathroom remodelers from Bath&ShowerPros.

Explore Options

Parts of a Bathroom

Typically, there are several components to a bathroom—sink, shower, tub and toilet—and the ability to which a space is able to accommodate these various elements ultimately determines the bathroom layout.

A full bathroom houses all four components into the space. Bathrooms with three components are called three-quarter bathrooms. Half bathrooms have two of the four components. The smallest bathroom design is a quarter bathroom, and the term primary bathroom is also one that you should know.

The overall aesthetic and function of a bathroom can be enhanced with the addition of a few bathroom accessories such as:

Bathrooms are ideally located to the north of the house and attempt to take advantage of natural light and ventilation. Because of the humidity and dampness that can be found in most bathrooms, it’s best to be mindful of the materials selected for the floor and surfaces—materials that are slip-resistant as well as mold- and mildew-resistant are ideal.

Below, learn more about the nine types of bathroom layouts.

Full Bathroom

Full bathrooms can be either center or side layouts. Side layouts are designed with the sink, toilet, tub or shower all installed along one wall of the bathroom.

Full bathrooms with a center layout feature components on two walls—the toilet and sink paired together on one wall, and the tub or shower in place along another. Central full baths typically have a center so that you can access all of the bathroom’s components with ease.

Advertisement

THIS IS AN ADVERTISEMENT AND NOT EDITORIAL CONTENT. Please note that we do receive compensation for any products you buy or sign up to via this advertisement, and that compensation impacts the ranking and placement of any offers listed herein. We do not present information about every offer available. The information and savings numbers depicted above are for demonstration purposes only, and your results may vary.

Using your home's equity is an easy way to fund your bathroom renovations!

Get prequalified in minutes by clicking on your state.

Learn More

Three-Quarter Bathroom

A three-quarter bath typically offers some type of storage, possibly a few strategically placed storage shelves, and although still widely considered to be on the small side, is known to include a sink or vanity, a toilet and a shower.

Half Bathroom

Half bathrooms are sometimes also called utility bathrooms or powder rooms and typically include a sink and toilet. Depending on where these two fixtures are positioned in the space, you might be looking for a space with either a linear, single wall or split design plan.

Quarter Bathroom

These bathrooms, often called utility closets or utility showers, typically only hold one bathroom component, either a shower stall or a toilet. Quarter bathrooms exist in most instances as additions to the lower level of a property and allow someone to attend to their personal hygiene without entrance to the entire home.

Master Bathroom

The master bathroom is typically the biggest and most private bathroom in a particular residence and sometimes can be found attached to the master bedroom as sort of an en suite design. One might also see this bathroom referred to as the primary bathroom.

Primary bathrooms can pull out all the stops with a master bathroom and design it to one’s liking for maximum relaxation, with the following optional elements:

Jack-and-Jill Bathroom

This type of bathroom is positioned between two bedrooms and has two doors through which it can be entered from either bedroom. These bathrooms can feature one or two sinks, and include a tub or shower and a toilet.

Split/Split Entry Bathroom

Split bathrooms compartmentalize the entry area and main or primary sink in one distinct area of the bathroom, with the toilet and bathtub being encased in another area of the bathroom.

Split bathrooms are ideal in situations where the bathroom has to be shared by more than one person, as it mimics the feel of two separate bathrooms since one person could use the sink area while another simultaneously occupies the toilet and tub area.

Corner Shower Bathroom

Corner shower bathrooms are typically seen as shower rooms or as part of a guest room. They feature a shower stall that can either be placed in the corner for the best use of space or in the center of the space if you aren’t tight on room.

Advertisement

THIS IS AN ADVERTISEMENT AND NOT EDITORIAL CONTENT. Please note that we do receive compensation for any products you buy or sign up to via this advertisement, and that compensation impacts the ranking and placement of any offers listed herein. We do not present information about every offer available. The information and savings numbers depicted above are for demonstration purposes only, and your results may vary.

Compare Quotes From Top-rated Local Bathroom Remodelers

Free, No-commitment Estimates

Find A Bathroom Remodeler

Accessible Residential Bathroom

These types of bathrooms are designed for wheelchair users and are typically larger in size because they are required to have sufficiently clear floor space so that a wheelchair is able to perform a complete turn. The doors of these bathrooms have a minimum required width and are not allowed to swing into the room’s free floor space.

Your Home. Your Decisions. Our Support.

Get expert advice on your home, design tips, how much to pay for pros and hiring experts, delivered to you daily.

{{ newsletterState.emailErrorMsg }}

Thanks & Welcome to the Forbes Home Improvement Community!

{{ newsletterState.emailErrorMsg }}

I agree to receive the Forbes Home newsletter via e-mail. Please see our Privacy Policy for more information and details on how to opt out.

Bathroom Projects - 35 Layout Ideas Photos

Have you thought about the idea of ​​​​creating an original bathroom project - multifunctional, compact and stylish? Do you want to be proud of your bathroom and make it truly unique? No problem!

We have prepared for you a selection of photo ideas for bathroom planning projects with the placement of all necessary plumbing.

Meet, draw conclusions and turn your ideas into reality.
We are absolutely sure that your bathroom will be the best!


small bathroom project idea1 (area 3.5 sq.m) photo1

The idea is that instead of a bathtub, a square type shower enclosure measuring 80x100cm with a sliding door and a low shower tray made of cast marble with a drain tray is installed. White glossy furniture 100cm wide hanging type with a large mirror with internal lighting. Wardrobe cabinet-black, placed in the corner at the entrance. Wall hung toilet bowl with installation system hidden in the wall. Heated towel rail - ladder type (70x120cm) The design idea is the contrast of white and black.


project of a small bathroom with a window idea 2 (area 4 sq.m) photo 2

Multifunctionality and compactness were taken as the idea. Both a bathtub and a shower are located on an area of ​​1.6x2.5m. The rectangular acrylic bathtub (dimensions 160x70cm), which is separated from the shower area by a partition, simultaneously performs the function of zoning. The width of the shower compartment is 80 cm x 100 cm. A round shower system with a mixer-thermostat and a multifunctional watering can was used. Towel dryer - electric (glass panel 60x160cm) Hanging furniture with mirror cabinet width 90cm


project of a small bathroom with a window idea 3 (area 2.7 sq.m) photo 3

The idea of ​​a very compact option with the placement of the most necessary sanitary ware. The drain system is built directly into the floor with water removal through a drain tray measuring 10x60cm. Wall-hung toilet with wall-mounted installation system. Wash-stand with a mirror 70 cm wide.0003


very small bathroom project idea 4 (area 2.7 sq.m) photo 4

Bathroom width 1.6 m length 1.7 m. The shower niche is quite wide with dimensions (80x160cm) and two front walls made of GKLV, which perform the function of zoning the room.
Doors 85 cm. oar two folding from the tempered 5 mm. glass. For such a width, it became possible to make a seat, which is also very convenient. Drainage system in the floor, through a long drain tray. The shower system is multifunctional. Sink furniture laid on type 65cm. together with shelves and a mirror, it performs the function of furniture. Wall-hung toilet with wall-mounted installation system.


Bathroom project idea idea 5 (width 1.6m length 1.8m). photo 5

Shower enclosure 90x90cm square type with one-section hinged door with shower system, thermostatic mixer and multifunctional hand shower. Drainage through the shower tray built into the floor. Hanging bathroom furniture 90 cm wide with a mirror cabinet. Wall hung toilet bowl with built-in installation system. A niche above it will allow you to place glass shelves for accessories and accessories. Water heated towel rail 70 cm wide and 1.4 m high.


project of a bathroom with a window idea 6 (area 4 sq.m) photo 6

The idea consists in a double-sided clear zoning of the shower compartment with 1.8 m high GKVL partitions with tiling. The shower system is built into the wall, draining through a drain built into the floor. Passage between partitions 50 cm. Acrylic rectangular bathtub 160x70cm with front panel. Wall-mounted toilet bowl with built-in installation system in a separate box. Hanging furniture 120 cm wide with a large illuminated mirror. Water heated towel rail 60 cm wide. 180 cm high.


bathroom project with a window idea 7 (area 4.7 sq.m) photo 7

The main idea - furniture with two sinks is a kind of "chip" and will be justified if family members want to have their own separate sink with their own accessories and accessories . In principle, each sink can be fitted with the faucet model that best suits your personal needs. Cast marble shower tray 80 cm wide and 180 cm long. Instead of doors, a 120 cm wide shower screen was used. Shower system with a mixer-thermostat and a multifunctional shower head. Water-type heated towel rail 180x60cm.


bathroom project with a window idea 8 (area 4.7 sq.m) photo 8

An interesting design option for a bathroom with an original solution for making a shower enclosure with walls made of GKVL (70x70cm) finished with ceramic tiles that perform the function of zoning. The original solution is the tiled seats placed in the corners. All communications are located inside the wall, which is very convenient for connecting a shower system with a mixer and a watering can, a water heated towel rail and a toilet bowl. The drain is located directly in the floor, which is 10 cm higher than the main one. A wall-hung corner toilet with a corner installation system is a convenient and practical option for placement in a small bathroom space. Hanging furniture with a large mirror 120 cm wide.


bathroom project with a window idea 9 (area 3.8 sq.m) photo 9

A simple version with a standard set of plumbing fixtures and a washing machine. Shower enclosure made of 8mm tempered tinted glass 80x100cm rectangular type with a single leaf door. Shower system with thermostatic mixer and watering can. Drainage is made through a long tray mounted directly into the floor. Floor furniture with a mirror and lighting 90 cm wide. A wall-hung toilet bowl with an installation system built into a separate box. All communications are closed with a separate box on the side of which there is a niche with shelves for storing accessories and accessories. Electric heated towel rail 70x120cm. It simultaneously acts as a heating radiator under the window. Two-section wardrobe 90x160cm with built-in washing machine inside.


bathroom layout with window idea 10 (area 5 sq.m) photo 10

Medium-sized bathroom: (width 2. 5m length 2.0m) includes the following sanitary ware.
Cast marble oval bathtub 160x70cm with built-in mixer tap. Hanging furniture 110 cm wide. with sink, mirror and lighting. Separate mirror 70cm wide and 120cm high. located on the wall from the left end of the bath. Shower enclosure rectangular type 120x80cm. with sliding door and tempered 8mm tinted glass. Shower system with thermostatic mixer and multifunctional watering can. Drainage of water into the sewer through a tray 100 cm long. A wall-hung toilet bowl with an installation system built into a separate box with a two-mode button.


bathroom project idea 11 (area 3.4 sq.m) width 1.7 length 2.0 m photo 11

The main idea of ​​the project is a shower separated by a decorative GKVL partition finished with ceramic tiles, inside which communications are located. Dimensions width 30x100x20cm. height 200cm. The passage is small, only 50cm. Drainage through built-in shower drain. Shower system with a mixer built into the partition and a multifunctional watering can. From the outside, a water heated towel rail is installed on the partition - a ladder 80x120cm. Quite rationally placed corner wall-hung toilet bowl with corner installation system placed in a separate box and trimmed with ceramic tiles. Hanging furniture 100 cm wide with a large illuminated mirror.


bathroom layout with two windows idea 12 (area 3.4 sq.m) width 2.0m length 1.7m photo 12

The layout includes the following plumbing. Rectangular acrylic bathtub 170x70cm with built-in faucet on the side of the bathtub and a shower system placed on the wall. On the front side of the bath there is a glass shower curtain (fence) with a width of 80 cm. on hinges opening to the right side to the window. Hanging furniture 70 cm wide. With a mirror with internal illumination. Towel dryer - ladder width 60 cm. height 140 cm. A wall-hung toilet bowl with an installation system built into a separate box and a two-mode button.


idea for a bathroom with a window idea 13 (area 3. 56 sq.m) width 1.8m length 2.2m photo 13

The layout includes the following plumbing. Acrylic asymmetric bathtub 180x90cm with a 60cm wide partition made of 8mm tempered glass with a mixer in the wall, a shower bar and a multi-mode watering can. A wall-hung toilet bowl with an installation system built into a wide box. On top of the box there is a tabletop for placing accessories and supplies. Instead of furniture, a wide 130 cm table top with a 60 cm wide countertop and a tall mixer tap was used. There are shelves for accessories on the bottom of the table top. Towel dryer - water ladder 60 cm wide. 120 cm high.


project of a bathroom with a window and a washing machine idea 14 (area 5 sq.m) width 1.8m length 2.6m photo 14

The layout includes the following plumbing. Large rectangular shower enclosure 160cmx90cm with ceramic tiled seat. 8mm tinted tempered glass. Sliding one section door. Shower system with thermostatic mixer and hand shower. Drainage through shower tray 100cm. embedded directly into the floor. Towel dryer - ladder 80x140cm. Wall hung toilet. The sink is 80 cm wide. All communications, including the installation system, are located behind a false wall made of GKVL lined with tiles.


bathroom with a window and a washing machine idea 15 (area 4.0 sq.m) 2.0x2.0m photo 15

A very simple and compact bathroom project with a shower located in a niche measuring 1600x80cm. 8mm tempered glass enclosure with one centrally located door. The dimensions allow you to place a faucet, a shower system or a bar with a watering can in any convenient place. Drainage is provided through a shower ladder built into the floor. Toilet bowl floor two regime. Floor standing furniture with 80 cm wide artificial marble sink with large wardrobe and mirror. To the left of the door, you can place an electric or water heated towel rail.


Very compact bathroom project with a window idea 16 (area 4.3 sq.m) photo 16

The main idea of ​​this rational project is to place all the most necessary sanitary ware in a small area (1. 8 m wide, 2.4 m long). Acrylic rectangular bathtub 1700x70cm. with built-in wall mixer. A wall-hung toilet bowl with an installation system placed in a separate box with a two-mode button. Shower enclosure 90x90cm. with hinged door, low shower tray and shower system with multi-mode hand shower. Water-type heated towel rail (dimensions 60x120cm). Bathroom furniture 80 cm wide with mirror and lighting. Wardrobe two-section width 40cm.


bathroom project idea idea 17 (area 2.8 sq.m) photo 17

The non-standard geometric shape of the bathroom and the small size made it possible to place the necessary sanitary ware, but without a toilet bowl. If you reduce the width of the furniture (in the project it is 110cm, the mirror is 100cm) to 50-60cm and shift it to the left corner, it will be possible to place a floor-standing toilet in the center. A good option with the use of corner furniture and mirrors on the sides. Acrylic asymmetric bathtub 160x70cm.Mixer with thermostat. Shower rack with multi-mode watering can. Towel dryer - water type ladder 50x160cm. Floor cabinet 45cm wide.


bathroom project idea 18 (area 3.8 sq.m) width 2.0m, length 1.9m photo 18

Includes all the most necessary sanitary ware. Asymmetric acrylic bathtub 160x70cm. Wall-mounted faucet with thermostat and shower head. Between the end of the bathtub and the wall there is a seat lined with ceramic tiles, which is very convenient. Hanging furniture with a sink made of artificial marble 70 cm wide. with wardrobe and illuminated mirror. Shower enclosure 90x90 cm. without shower tray with water outlet through a wide tray 80 cm long. allowing to receive a large flow of water from the shower system. The system includes an overhead shower with a diameter of 350mm. and mixer thermostat with multi-mode watering can. Glass at a protection tempered 8 mm thick. The design is reinforced with additional upper elements of fastening to the wall. A wall-hung toilet bowl with an installation system built into a separate box with a two-mode button.


project of a walk-through bathroom idea 19 (area 3.5 sq.m) width 1.6m, length 2.2m photo 19

A very convenient project for two rooms, including all the necessary plumbing. Shower enclosure 120x80cm with double sliding doors and 6mm tempered tinted glass. Shower tray acrylic low. Thermostatic faucet with multifunctional shower head. Bathroom furniture with floor type mirror 80 cm wide. In addition to everything, the area of ​​\u200b\u200bthe room allows you to place an additional cabinet and a pencil case. Heated towel rail - a ladder 60 cm wide. 180 cm high. Suspended type toilet bowl with an installation system built into a separate box made of GKVL.


bathroom variant with zoning elements idea 20 (area 4.8 sq.m) width 2.2m, length 2.2m photo 20

between themselves and the main room with partitions from GKVL. Partitions are finished on all sides with ceramic tiles. Bath acrylic rectangular type 170x70cm. Instead of furniture, a tabletop 130 cm long was used with an overhead round sink. Pay attention to the rationality of such a solution, where the countertop fills the space between the end of the bath and the wall. Wall-hung toilet with wall-mounted installation system. Shower area 90x110cm with shower system, watering can and thermostatic mixer.


bathroom with a large shower cabin idea 21 (area 3.6 sq.m) width 1.9m, length 1.9m photo 21

A very rational project with maximum use of the entire area of ​​the bathroom. The base of the shower project is 190cm wide. depth 100cm. separated from the premises by partitions 50 cm wide. made of gypsum board finished with tiles and 2.1 m high. Two-section tempered glass doors 90cm wide. On each side, seats are made 40 cm wide, which is very convenient and creates additional comfort. Drainage of a large volume of water from the shower system is provided by a shower tray 1.1m long. Multifunctional shower head, mixer tap with thermostat. A wall-mounted toilet bowl with an installation system built into a separate box made of GKVL with a two-mode button. Hanging furniture width 90cm with large mirror and overhead lighting.


bathroom project with a large window idea 22 (area 4 sq.m) width 2.0m length 2.0m photo 22

The following sanitary ware is used in the project. Asymmetric acrylic bathtub 170x80cm. Shower system with multifunctional watering can and thermostatic mixer. Hanging type bathroom furniture 90cm wide. with artificial marble top. A wall-hung toilet bowl with an installation system built into a separate box made of GKVL. Towel dryer ladder type width 60cm. length 180cm.


bathroom project idea 23 (area 4sq.m) width 2.2m length 1.8m photo 23

The base uses a large shower space, which occupies almost 30% of the total bathroom area. 130cm wide tempered glass shower enclosure. Cast marble shower tray 80x130cm. The watering can on the rod is multi-mode, the mixer with a thermostat. Floor type bathroom furniture 80 cm wide. with a mirror. Ladder heated towel rail 60x180cm. A wall-hung toilet bowl with an installation system built into the GKVL box with a two-mode button.


Original project of a bathroom with a window idea 24 (area 3.2 sq.m) 1.6x2.0 m photo 24

The basis is a diagonal shower screen with sliding doors made of frosted tempered glass 100 cm wide. Drainage of water through the shower drain, shower system with shower head and faucet. For greater comfort in the shower, a seat with ceramic tiles has been made. Bathroom furniture 60cm wide. floor type. A wall-hung toilet bowl with an angular installation system and two mode buttons mounted in a separate box made of GKVL.


project of a bathroom with a window idea 25 (area 4sq.m) 1.8x2.2m photo 25

A wall-mounted toilet bowl with an installation system built into the wall is separated by a false partition from the shower 70cm wide. Shower screen made of 8mm tempered glass 90cm wide. The shower head is multi-mode, a mixer with a thermostat. Drainage through shower tray 80cm wide. embedded in the floor. Furniture for a bathroom suspended 100 cm wide. with large overhead mirror. Towel rail 60cm wide and 160cm high.


bathroom project with a large window idea 26 (area 4.6 sq.m) 2.0x2.3m photo 26

The base is a rectangular bathtub 170x80cm built into the podium. artificial marble. A wall-hung toilet bowl with an installation system built into a separate box. Shower screen made of 8mm. tempered tinted glass 90cm wide. Shower system with watering can and faucet. Drainage through a shower drain built into the floor. The two-door case is built into the wall and separated from the door by a GKVL partition. Instead of furniture, a long countertop with a built-in sink and a wide mirror is used. Water heated towel rail 50 cm wide. and height 170cm.


bathroom with a window idea 27 (area 4 sq.m) 1.8x2.2 m photo 27

A very rational project includes all the necessary plumbing. Bath of their artificial marble oval type 170x80cm. with front panel. Hanging type bathroom furniture 100cm wide with a large top-lit mirror. Corner shower enclosure made of tempered 8mm glass with one door. Shower system, shower switch mounted in a corner structure made of GKVL and finished with ceramic tiles. Drain through the shower drain built into the floor. The hanging type toilet is built into the original GKVL box inside which the installation system with two mode buttons is mounted.


bathroom project idea 28 (area 3.6 sq.m) 1.8mx2.0m photo 28

Based on the corner arrangement of the shower enclosure and the toilet bowl, which is very rational for small bathroom areas. Shower walls - GKVL structure finished with ceramic tiles. Shower doors oar two-section from the tempered 6 mm glass. In the corner there is an original shelf for accessories in the same material and finish. Mixer thermostat with shower column and watering can. Drainage through the shower tray built into the floor. Wall-mounted corner toilet bowl with a corner installation system mounted in a box and a two-mode button. Water heated towel rail 80x140cm. Bathroom furniture hanging 9 wide0cm with mirror and backlight.


bathroom project idea 29 (area 4.4 sq.m) 2.2mx2.2m photo 29

The shower area is separated from the main one by partitions made of GKVL and tiled. Hanging type bathroom furniture 90cm wide. with large mirror and lighting. Inside there are communications (pipes of water supply and sewerage), which is very convenient for symmetrical connection of plumbing. Water heated towel rail 60x160cm. Rectangular cast marble bathtub length 170cm width 70cm. built into the podium made of GKVL and tiled. Please note that if you wish, you can add a toilet to the project and place it opposite the door. It is enough just to shift the bath to the left side.


project of a bathroom with a washing machine idea 30 (area 4.3 sq.m) 2.4mx1.8m photo 30

It is unique in its own way because of the large top-lit mirrors located on both sides of the wall. They create an excellent effect of expanding space. Asymmetric acrylic bathtub 160 cm long and 110 cm wide. Wall-mounted faucet with multi-mode shower head. A side-mounted toilet with an installation system built into the wall and a two-mode button. Washbasin 70 cm wide with a shelf for accessories. The presence of a washing machine favorably distinguishes this project from others.


small bathroom project idea 31 (area 2.25 sq.m) 1.5m x1.5m photo 31

Perhaps this is the most super compact version of a small bathroom. Shower enclosure 90x90cm with acrylic shower tray, shower panel and shower head. Glass tinted 6mm thick. with additional fastening to the wall, ensuring the reliability and stability of the entire structure. Floor-mounted toilet bowl with two-way flush button. Sink - cabinet one-door angular 70x70cm with a mirror and top lighting.


project of a bathroom with a washing machine and a window idea 32 (area 5.4 sq.m) 2.7m x2.0m photo 32

Instead of a shower cabin, this option uses a partition made of GKVL lined with ceramic tiles. Inside which there are communications (hot and cold water), which greatly simplifies the connection of the shower system, shower head and mixer. Hinged door 90 cm wide. made of 6 mm tempered tinted glass. Water drain through the shower drain mounted directly into the floor and located in the corner. Bath acrylic rectangular type 170x70cm. with tiled front screen. Mixer with watering can wall type. Bathroom furniture 100 cm wide with faux marble top and large overhead mirror. Case - case one section with a mirrored door 45 cm wide. If desired, if you reduce the width of the furniture, you can install a toilet bowl instead of a pencil case. In this case, the bathroom will be the most functional.


project of a bathroom with a washing machine idea 33 (area 4.3 sq.m) 2.4mx1.8m photo 33

A modern and stylish option with all the necessary plumbing. Acrylic asymmetric bathtub 170x80cm. mixer with built-in watering can. Wall-hung toilet with wall-mounted installation system and dual-mode button. Heated towel rail (ladder type) 60 cm wide and 120 cm high. Bathroom furniture 180 cm wide. with invoice 70 cm. sink With large mirror and overhead lighting. Wall mounted mirror cabinet 140cm wide. Another wardrobe 160cm wide. located at the bottom. The washing machine is built into the wall and harmoniously fits into the overall design of the bathroom.


bathroom project with a window idea 34 (area 5.2 sq.m) 2.6m x2.0m photo 34

The idea is that on the sides of the window all the necessary plumbing is located along the entire length of the wall, which creates the effect bright and spacious room. The 2.6 meter wide tabletop is a very practical and interesting solution. A wall-hung toilet with a built-in installation system under the countertop. The flush button is located on the top. Sink of laid on type 80 cm wide. Mirror with side lights. Bathtub acrylic asymmetric type 170х90cm Shower enclosure made of two sections of 8mm tempered glass with an additional element reinforcing the entire structure. Sliding one section door. Acrylic pallet size 90x90cm. with anti-slip coating.


bathroom project idea 35 (area 5. 3 sq.m) 2.3mx2.3m photo 35

Includes an asymmetric acrylic bathtub 1.5x1.2m. Semi-circular shower enclosure with 6mm tempered glass sliding doors and structural reinforcements. Cast marble shower tray. Shower system with multifunctional watering can and mixer thermostat. Bathroom furniture floor type with a large mirror width 90cm A side-mounted toilet with an installation system built into the wall and a two-mode button.

We hope you found an interesting idea and photo of the bathroom layout that will make your dreams come true. Good luck!

Bathroom layout: 117 photos, bathroom design tips

01/23/2022

1 star 2 stars 3 stars 4 stars 5 stars

We tell you how to plan a bathroom in old and new houses. We analyze options for an adjacent and separate bathroom, give general advice on creating a layout.

Instagram @tatiana__sauliak

A bathroom in an apartment is usually small in size, and for independent planning, this is both a plus and a minus. On the one hand, there is no need to think through zoning and complex arrangement of furniture. On the other hand, there are not so many options for its placement, and sometimes it is not at all clear how to place everything you need on 3-4 squares. In this article, we tell you how to create a bathroom layout in any apartment, as well as share useful ideas and show photos of real interiors

All about planning solutions

Type of bathroom
— Combined
— Separate
House type
— Stalinka
— Khrushchev
— Brezhnevka
— New building
Planning advice
– Plumbing
— Furniture

There is still no consensus on which bathroom layout is better, combined or separate. Both options have their pros and cons. Another question - is it possible to change the type of room? For example, combine a bathroom and a toilet to create a more spacious and ergonomic space. In short, it is possible - except for two cases:

Remodeling can be simple (demolishing a wall) or complex (demolishing a wall and adding part of a hallway or storage room). Any of them, as well as the combination of two rooms into one, must be agreed upon.

Combined

Instagram @modern_design_od

A combined bathroom has a number of significant advantages:

There are also disadvantages:

17
a photo

Instagram @victoria_malysheva_interiors

Instagram @victoria_malysheva_interiors

Instagram @victoria_malysheva_interiors

Instagram @tretiakova_interior

Instagram @tretiakova_interior

Instagram @tretiakova_interior

Instagram @anna_iss

Instagram @anna_iss

Instagram @anna_iss

Instagram @anna_iss

Instagram @anna_iss

Instagram @modern_design_od

Instagram @modern_design_od

Instagram @modern_design_od

Instagram @natamodo

Instagram @natamodo

Instagram @natamodo

Example 1

Instagram @modern_design_od

In a small square room, it is better to place furniture and plumbing along the walls. If the room has ledges (for example, a box with communications), niches and other architectural features, be guided by them.
For example, here we see a small ledge in the corner. It shortens the length of two adjacent walls, so a toilet bowl with a hygienic shower and a sink were placed along them. The wall to the left of the entrance was enough to put a rectangular bathtub and hang a compact heated towel rail.

Example 2

Instagram @efimova_designer_online

If you are planning a bathroom from 6 sq. m and more, here you can already start working with space. For example, in this spacious room there was a place for a bath, shower, toilet, sink, washing machine and several storage systems.
So that furniture and plumbing are not just randomly located along the wall, the area with a shower was separated from the rest of the space by a small partition. She also became a wall for the shower box. To avoid visual noise in the room, use built-in closed storage systems if the area allows.

Separate

Separate type is often found in old houses: Khrushchev, stalinka, panels.

Instagram @interiors_dd

The advantages are obvious:

Cons:

fourteen
a photo

Instagram @logvina_design

Instagram @logvina_design

Instagram @logvina_design

Instagram @logvina_design

Instagram @interiors_dd

Instagram @interiors_dd

Instagram @interiors_dd

Instagram @ekaterinazag. design

Instagram @interiors_dd

Instagram @interiors_dd

Instagram @interiors_dd

Instagram @interiors_dd

Instagram @interiors_dd

Instagram @interiors_dd

Example 1

Instagram @efimova 90_designer03

This planning solution is typical for standard Khrushchev houses and panels. With the proper arrangement of all elements, even on an area of ​​​​2.3 squares, there is a place for a full-fledged bath and washing machine.
So, here a bowl with a standard width of 70 cm was placed along the wall opposite the entrance. The length of this model is 140 cm, but there are also more compact options: for example, 130 and 120 cm.
To the right of the entrance, a sink with a capacious pedestal under it was placed, to the left - a utility closet with a washing machine and a dryer. If you do not need a dryer, you can make shelves for storing towels or household chemicals in its place.

Example 2

Instagram @stalinka. life

And here is an example of the design of the toilet and bathroom in stalinka. Here the room is square, with a small niche on the left. In general, the placement of elements is standard: a bowl along the wall opposite the entrance, on the right is a sink with a small storage system, on the left is a washing machine or utility closet.
A toilet is placed in the toilet, optionally a hygienic shower or several narrow shelves for storing toilet paper and small items.

Stalinka

Apartments in Stalinist buildings are associated with high ceilings, large windows and many rooms.

Instagram @stalinka_na_avtozavodskoy

Depending on the series, there are plans with an adjacent and separate sanitary unit. A typical option in the second case is a bathroom of 3 square meters. m and toilet 1.7 sq. m. You can combine them, but only with the coordination of redevelopment.

eighteen
a photo

Instagram @zlata_des

Instagram @zlata_des

Instagram @zlata_des

Instagram @zlata_des

Instagram @stalinka_na_proletarke

Instagram @stalinka_na_proletarke

Instagram @stalinka_na_avtozavodskoy

Instagram @stalinka_na_avtozavodskoy

Instagram @stalinka_v_danilovskom
On the right, a standard bowl or a homemade shower box fits perfectly - it will turn out to be quite spacious.

Example 2

Designer: Larisa Topova

In some stalinkas, utility rooms are quite large. For example, in this project, a separate bathroom and a bathroom were combined and received a common room of 8 square meters.
For space zoning, a partition was used that separates the toilet area. A bathtub and a shower room were placed opposite the entrance, and there was also a place for a large sink and storage system.

Khrushchevka

Spacious stalins were replaced by Khrushchevs - apartments with a modest area and inconvenient planning solutions by today's standards.

Instagram @katya_dorohina

Among the main problems are the small kitchen and bathroom. For example, in houses of series II-18-0108 and II-18-0109, the area of ​​adjacent bathrooms did not exceed 2.4 square meters. This is comparable to a bathroom in a small studio. The situation is slightly better in the 1605-AM series: a sanitary unit 3 squares and a toilet 1 square. If you combine them, you need to work with the layout of the bathroom 2 by 2.

16
a photo

Instagram @xrushchevka

Instagram @xrushchevka

Instagram @staraya_presnya_

Instagram @staraya_presnya_

Instagram @staraya_presnya_

Instagram @staraya_presnya_

Instagram @troev43m2

Instagram @troev43m2

Instagram @troev43m2

Instagram @katya_dorohina
On the side of the entrance there will be a small sink with a pedestal. If there is space left, organize a compact storage system: a rack, mini-cart or shelves.
In a 1-1.5 sq. m, as a rule, only the toilet and communications fit. You can add a couple of narrow shelves for additional storage.

Example 2

Instagram @kovpak_katerina

If you have a Khrushchev with a combined sanitary unit or you decide to combine it, see our bathroom layout ideas 4 sq. M.
Here, the layout of the elements was planned based on a square ledge in the corner. There was a rectangular bowl along the wall, and cabinets to the right of the entrance. If desired, you can put a narrow washer there - for example, with a vertical load.
On the left, a compact toilet bowl (37 cm wide) and a washbasin with cabinet (50 cm wide) were installed.

Brezhnevka

Houses of Brezhnev's development are popularly called "improvements" - it was believed that their layouts were more successful compared to Khrushchev houses.

Instagram @u_tani_doma

In apartments, in addition to load-bearing walls, there are almost always additional internal partitions. The bathroom, as a rule, is separate (adjacent ones are found in odnushki). When repairing, it is important to consider the following points:

12
a photo

Instagram @43_livnordic

Instagram @43_livnordic

Instagram @so_homy

Instagram @so_homy

Instagram @u_tani_doma

Instagram @u_tani_doma

Instagram @u_tani_doma

Instagram @u_tani_doma

Instagram @takinada

Instagram @takinada

Instagram @takinada

Instagram @takinada

Example 1

Instagram @buneev_design

Usually, non-residential premises in Brezhnevka houses are a little more spacious compared to Khrushchev houses, so it is not so difficult to place everything you need there. For example, here we see an option for planning a bathroom combined with a toilet in a kopeck piece.
To the left of the entrance, there was enough space for a spacious rectangular bath 80 by 180 cm. A sink and a toilet bowl with a storage system were placed on the other two sides. If you put a shower, a washing machine will fit here.

Example 2

Instagram @62_kv_m

This apartment is located in a house built in 1973. The owners got a tiny bathroom with an area of ​​​​only 2.1 square meters. m and toilet 1.1 sq. m. In order not to complicate and not delay the repair, they decided not to combine. The essentials were placed on a small footage: a toilet in one, a bath with a sink in the other.
The design of the houses in this series allows you to coordinate the demolition of the adjacent wall. In this case, 3.2 squares will be available. The toilet can be moved and thus make room for a small washing machine or utility closet.

Modern homes come in a variety of layouts, from tiny bathrooms in studios to spacious bathrooms. In three-, four- and five-room apartments, two bathrooms are most often provided - both can be combined even with a large number of residents.

An area of ​​4.5 squares, as in this example, allows you to comfortably place everything you need in a typical apartment. Here we see the layout of the combined bathroom: a bowl was installed opposite the entrance, a long installation, a hanging toilet bowl and a large sink were installed on the side.
In this project, there is almost no space between the door and the wall on the left, so it will not work to place a sink or washing machine there. In such cases, you can use the space for a shallow rack, shelves or heated towel rail.

Example 2

Instagram @trofimchuk175

Another example of a planning solution for a standard 4-square room. The location of the plumbing was calculated from the toilet area. As a result, there was enough space for a rectangular bowl, a toilet bowl, a sink, cabinets and a washing machine.
As the author of the project writes in his blog, initially the washing machine was supposed to be under the sink, and in its place - a utility locker, but the full-size model did not fit under the countertop. As a result, it was moved to the toilet, and all the necessary storage was organized under the sink.

In a spacious room, you can easily find a place for everything you need, but in typical apartments, the footage is usually limited. Therefore, consider the important nuances of planning a small bathroom.

Plumbing

Instagram @mama_pogodok_4x

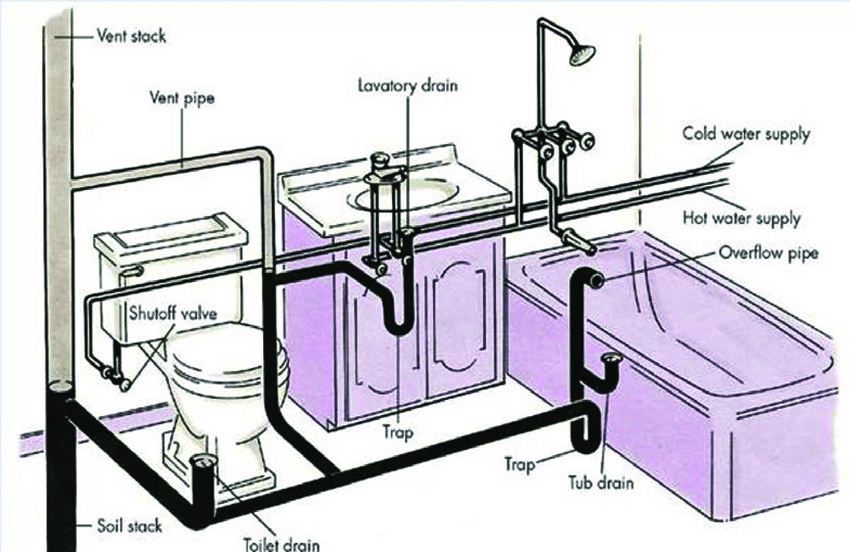

To avoid blockages, the toilet should be located as close to the riser as possible, so plan its location first. It is also important to decide whether you want a shower or a sitz bath. For small spaces, the optimal layout of the bathroom with a shower or a homemade box - this option saves a lot of space. The vacated area can be given under the washer or locker. If the bath is important, and the footage is very small, take a closer look at the corner models - there are very compact ones, the size of a shower cabin.

Instagram @anna_iss

Plan them after the plumbing, because you can refuse the utility closet, but the toilet is unlikely. If there is very little space, think about where to take some of the things: for example, store towels in the closet in the bedroom, and cleaning supplies and toilet paper supplies in the hallway or on the loggia.

Suitable for small rooms:

7
a photo

Instagram @muhacheva_elena

Instagram @muhacheva_elena

Instagram @anna_iss

Instagram @anna_iss

Instagram @anna_iss

Instagram @interiors_dd

Instagram @interiors_dd

Prepared by

Anastasia Stepanova

Was the article interesting?

Share link

By clicking on the "Subscribe" button,
you consent to the processing of personal data

Recommended

Gifts for yourself, family and friends: 8 ideas that will definitely please

Top 8 gift ideas for someone who doesn't like cleaning

7 fabulously beautiful living rooms decorated for the New Year and Christmas

5 apartments with stunning views

DIY Christmas tree toys: 13 simple ideas and 86 photo examples

Trends 2023: how to decorate a house and a Christmas tree for the New Year (video)

Kitchen-living room, bedroom and dressing room-gym: apartment 52 sq.

Learn more
